8 High Hydraulic Cold Rolling Machine MKW 950mm 220m Per Min Speed
1. technical specifications
Material:Stainless steel 304 201
Input thickness:≤3.0mm width =720～850mm
Output thickness ≥0.2～0.3mm, width =720～850mm
Max. coil weight:12t
Max rolling force: 10000KN
Rolling speed: ≤220m/min
ID/OD: Φ508/Φ1600mm
2. Main components:
1. Main rolling mill 1 set
2. Technical table 2 sets
3. roller-changing device 1 set
4. hydraulic 4-segment type uncoiler 1 set
5. solid reel drum coiler 2 sets
6. hydraulic station 1 set
7. thin oil lubrication station 1 pc
8. coolant system(provided by user) 1 set
9. electric control cabinet 1 set
Product list
- Machinery device
| NO. | DESCRIPTION | UNIT | QT’Y | NOTE |
| 1 | Hydraulic 4-segment Uncoiler | Set | 1 | |
| 2 | Hydraulic loading car | set | 1 | |
| 3 | Front solid coiler | set | 1 | |
| 4 | Front device | set | 1 | |
| 5 | Housing(including roller assy, pressure dwon device, hydraulic balancing device, side supporting beam, rail, etc) | set | 1 | |
| 6 | Right device | set | 1 | |
| 7 | Right solid coiler | set | 1 | |
| 8 | Main drive device | set | 1 | |
| 9 | Device of changing roller | set | 1 | |
| 10 | Pressure platform and stair, handrail | set | 1 | excluding fan and pipes are provided by user. |
| 11 | Foundation bolts | set | 1 | |
2) DC Motor
| NO. | NAME | UNIT | QT’Y | SPC. |
| 1 | DC motor | | 4 | |
| 1.1 | Main motor | set | 1 | Z710-4B,1500kW |
| 1.2 | Motor in coiler | set | 2 | Z630-3A,825kW |
| 1.3 | Motor in uncoiler | set | 1 | Z4-315-31 132KW |
| 2 | photoelectric encoder | Pc | 6 | |
| 3 | Electric controller | | Complete set | |
3) Liquid device
| NO. | NAME | UNIT | QT’Y | NOTE |
| 1 | AGC pump station | set | 1 | |
| 2 | General hydraulic station | set | 1 | |
| 3 | Thin oil lubricating system | set | 1 | |
4) provided by user
| No | Name | QTY | Note |
| 1 | IV type Gamma ray thickness gauge | 2 | |
| 2 | Coolant system | 1 | 3500l/min |
Product Tags:
|
|

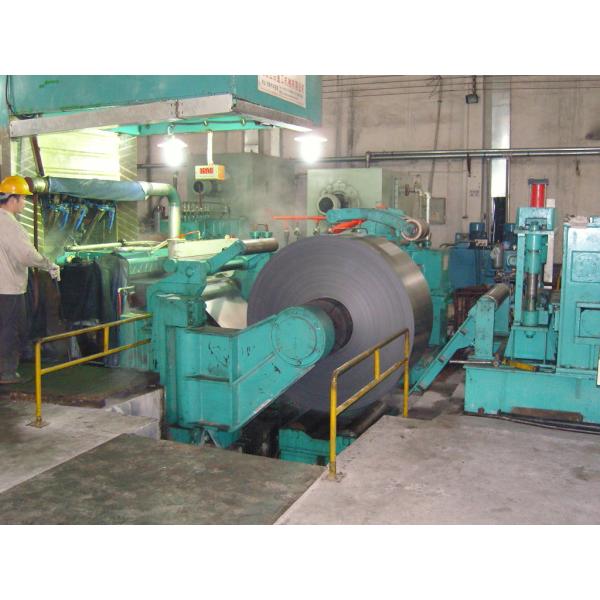

8 High Hydraulic Cold Rolling Machine MKW 950mm 220m Per Min Speed Images
|
